Technical Specifications
Type |
N/A Deep Groove Ball Bearing |
Bore Type |
N/A Round |
Material |
N/A High Carbon Chrome Steel |
Cage Type |
N/A Pressed |
Cage Material |
N/A Steel |
Ball Material |
N/A Steel |
Limiting Speed - Oil |
N/A 7400 rpm |
Limiting Speed - Grease |
N/A 6300 rpm |
Style |
N/A Maximum Capacity |
Precision |
N/A ISO Class 0 |
Configuration |
N/A One |
Radial Internal Clearance |
N/A CN |
Static Load Rating |
N/A 9900 lbf44055 N44.06 kN |
Dynamic Load Rating |
N/A 14700 lbf65415 N65.42 kN |
Enclosure |
N/A Open |
Weight |
N/A 1.984 lb0.900 kg |
Operating Temperature Range |
N/A -40 to 250 ºF-40 to 120 ºC |

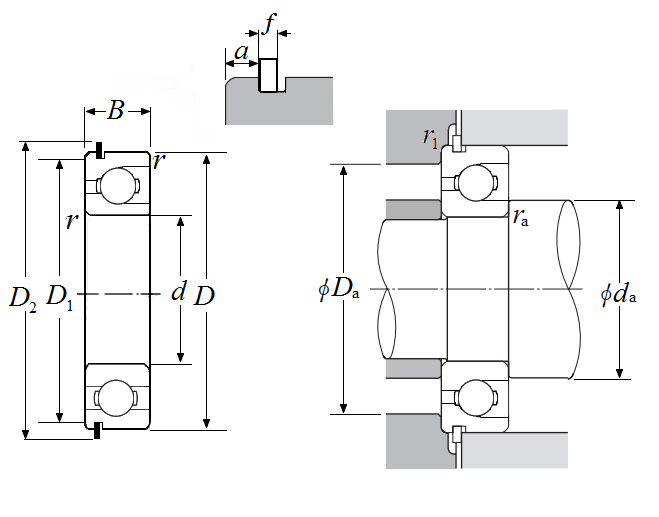

Dimensional Specifications
|
|
|
d |
N/A 1.7717 in45.000 mm |
D |
N/A 3.93700 in100.000 mm |
B |
N/A 0.98430 in25.000 mm |
D1 |
N/A 3.8110 in96.800 mm |
D2 |
N/A 4.1929 in106.500 mm |
a |
N/A 0.1291 in3.280 mm |
f |
N/A 0.0969 in2.460 mm |
r |
N/A 0.05910 in1.500 mm |
r1 |
N/A 0.0197 in0.500 mm |
da min |
N/A 2.0866 in53.000 mm |
da max |
N/A 2.4213 in61.500 mm |
Da max |
N/A 2.4213 in61.500 mm |
ras max |
N/A 0.0591 in1.5 mm |
