Technical Specifications
Type |

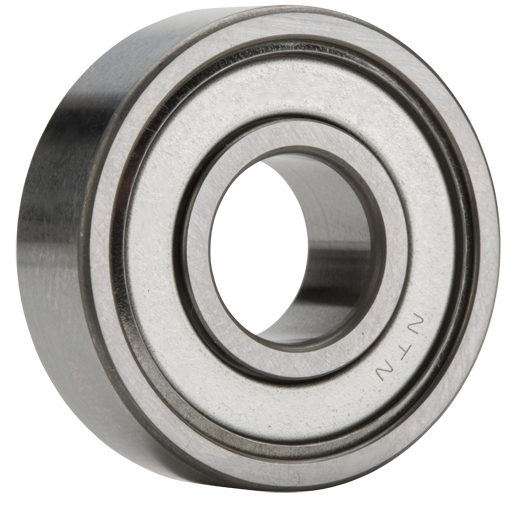

N/A Miniature / Extra Small Ball Bearing |
Bore Type |
N/A Round |
Material |
N/A High Carbon Chrome Steel |
Cage Type |
N/A Pressed |
Cage Material |
N/A Steel |
Ball Material |
N/A Steel |
Limiting Speed - Grease |
N/A 70000 rpm |
Precision |
N/A ISO Class 0 |
Configuration |
N/A One |
Factor |
N/A 15.0 |
Radial Internal Clearance |
N/A CN |
Static Load Rating |
N/A 13 lbf59 N0.059 kN |
Dynamic Load Rating |
N/A 30 lbf169 N0.169 kN |
Enclosure |
N/A Removable Double Shield |
Operating Temperature Range |
N/A -40 to 250 ºF-40 to 120 ºC |
